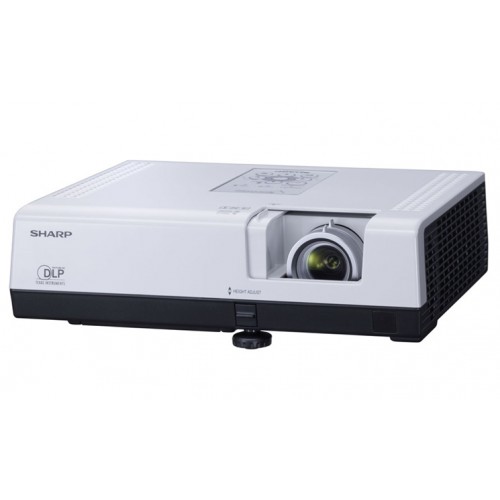

Conference Room Solutions PG-LX3500
KEY FEATURES
- DMD (TI) Chip (1024x768Pixel)
- High Brightness (3500AL)
- DTV/HDTV Compatible
- 3D Ready
- Wide PC Input Range
- Vertical Keystone Correction
- ECO 5000h Lamp Life
- Vario Lens
PANEL RESOLUTION
| Chip panel size | DMD / 0,55" |
| 1-Chip DLP(TI) / 3-Chip DLP(TI) / 3-LCD-Panel | • / - / - |
| Native Resolution | XGA 1024x768 |
| UXGA 1.600 x 1.200 | • |
| SXGA+ 1.400x1.050 | • |
| SXGA 1.280x1.024 | • |
| WXGA 1.280 x 800 / 1.360x 768 / 1.366 x 768 | • / • / • |
| XGA 1.024 x 768 | • |
| SVGA 800 x 600 | • |
| Mac Compatible | • |
PC-INPUT
| H-Frequence (kHz) | 15 - 110 |
| V-Frequence (Hz) | 45 - 85 |
| Pixel Clock (MHz) | 12 - 165 |
DATA TERMINALS
| DVI-D/ DVI-I | - / - |
| HDMI | • |
| 15 Pin-Sub D (RGB H/V; Y/Ucb/Ucr) | • |
VIDEO TERMINALS
| Composite (RCA/BNC) | • |
| S-Video (Y/C) | - |
| DVI-D/ DVI-I | - / - |
| Component (RCA/BNC) | - |
| HDMI | • |
| HDCP Compatible | • |
CONTROL TERMINALS
| RS232C (Sub-D) | • |
| LAN | • |
| Cable Control (via Remote Control) | - |
| USB-Host | - |
AUDIO TERMINALS
| Mini Jack (3.5 mm) In/Out | • |
| RCA-Stereo Terminal In/Out | • |
| Via HDMI-Terminal | • |
COLOUR STANDARDS
| PAL 60/N/M | - / • / • |
| SECAM | - |
| NTSC (MHz) 3.58/ 4.43 | • / - |
| Video Resolution, DTV-Lines / TV-Lines | 720 |
| DTV 480i/480p/540p | • / • / • |
| 576i/576p | • / • |
| 720p/1.035i | • / - |
| 1.080i/1.080p | • / • |
| 1.080/24p | - |
| CV-IC Scaler | - |
PICTURE DATA
| Luminance ECO-mode (ANSI Lumen) / Standard (ANSI Lumen) | 3500 |
| Contrast | 2000 |
| Projection lamp (W) / Lamp lifetime ECO-Mode (h) / Lamplife Standard (h) | 250W |
| Fan | 31 dB ECO / 39 dB Standard |
| Lens built-In / Changeable Lens | • / - |
| Zoom-Lens (Manual/ Motorized) | - / - |
| Zoom-Lens (Focal length, mm) | (Vario) 21,8 - 25,6 |
| Luminous Intensity (F) | 2,5 - 2,7 |
| Lens Shift (H/V) | - / - |
| Lens Ratio (Width to Distance) | - |
| Keystone (manual/auto) | • / - |
| Keystone (3D/digital) | - / - |
AUDIO DATA
| Audio-Monitor (stereo/mono) | - / • |
| Output Power (W), RMS | 2 |
ACCESSORIES

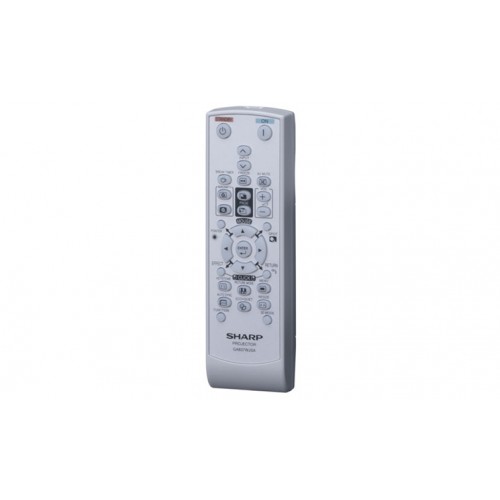

| Remote Control / Owners Manual (CD-ROM) | • / • |
| Power Cable / PC Cable | • / • |
| Scart-RCA-Adapter / Video Cable / IR-Receiver | - / - / - |
| Softbag | - |
OTHERS
| Special Features | BrilliantColor System by TI |
| Class A | This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. |
| Power supply (V) / power consumption, standard (W) / power consumption, ECO (W) / stand-by (W) | 100 -240 / 499 / |
| Heat Dissipation (BTU / h): ECO-lMode / Standard | - |
| Dimensions in mm (W x H x D) | 307 x 94 x 245 |
| Weight (kg) | 2,5 |
| EAN-code | 4974019762906 |
