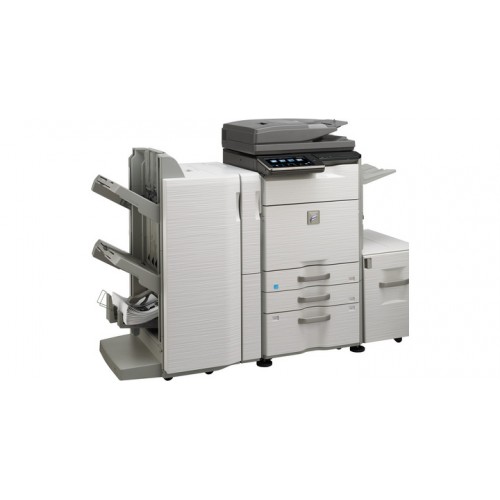

Copier [ Zerox ] Machine MX-M565N

Copier [ Zerox ] Machine MX-M565N
Copier [ Zerox ] Machine MX-M565N Copier [ Zerox ] Machine MX-M565N
Brand: Sharp
Product Code: MX-M565N

Overview

Equipped with many of the advanced performance features that have made Sharp's colour MFPs so successful, the new MX-M565N black & white, Cloud-ready MFP is perfect for all busy offices. One touch on the LCD control panel is all it takes to get instant acess to the Cloud or Cloud Portal Office. Industry leading green credentials that include low running costs, a lower-melt toner formulation, energy efficient toner with short warm up times - all add up to an environmentally-friendly design. Combining fast colour network scanning capabilities with powerful print, copy and fax features, the MX-M565N has all the functionality and speed you need to put it at the heart of your office operation.

With Sharp OSA as standard you can seamlessly integrate with Cloud applications developed by Sharp's Technology Partners and connect to every major network environment. You can add full internet access for browsing and printing web content plus the standard wireless LAN adaptor enables connection to wireless networks

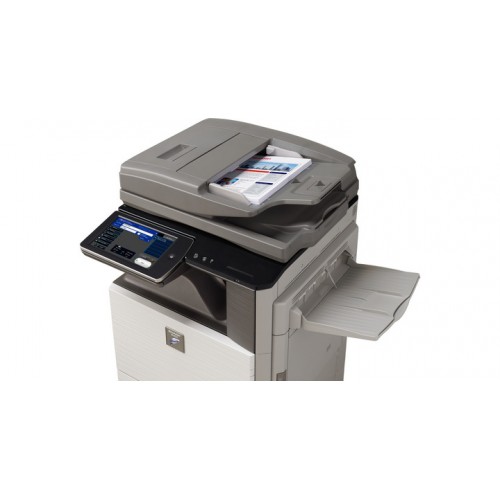

The 56ppm MX-M565N supports A3-wide network printing and copying, offers rapid scanning via the Duplex Single Pass Feeder, produces superb image quality and has versatile document filing, all supported by industry leading security. You can boost productivity further by adding fax functionality, extra security, additional paper capacity and a range of professional finishing options.

The retractable keyboard option makes data entry and emailing quick and simple. And there's a large 10.1" touch screen colour LCD panel with that makes even the most advanced features instantly and intuitively accessible. IT Administrators will appreciate the Remote Access Interface which simplifies support by letting them view and operate the front panel display from across the network plus with Sharp's advanced device management makes it easy to control usage and costs.

The Energy Star-certified MX-M565N uses Sharp's latest energy-saving technology. Everything - including consumables, power management and internet architecture - is designed to minimise energy consumption, reduce running costs and support your environmental objectives.

Specification

General
Engine speed Colour ppm (A4) -
Engine speed B/W ppm (A4) 56
Engine speed Colour ppm (A3) -
Engine speed B/W ppm (A3) 26
Paper size: Min.-Max. A5R - A3W
Paper weight (g/m2) 55 -300

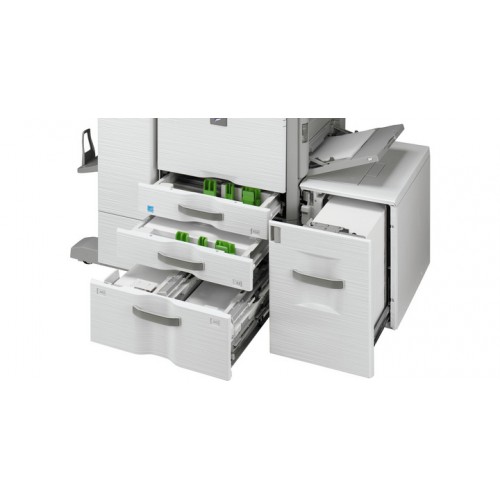

Paper capacity:Std (sheets) 600
Paper capacity: Max. (sheets) 6,600
Warm Up Time (sec.) 12
Memory general min/max (MB) 3072 - 4096
Memory printer min/max (MB) -
Harddisk STD
Harddisk capacity (GB) 320
Duplex STD
Power requirements - rated local AC voltage (Hz) 220 - 240V, 50/60Hz
Power consumption (kW) 1,84
Dimensions (mm) 618 x 713 x 843
Weight (Kg) 78
Copier
Original paper size (Max.) A3
First copy out time Colour (sec.) -
First copy out time B/W (sec.) 3,7
E-sort Std Y
E-sort Opt. -
Continuous copy (Max. copies) 999
Resolution Scan B/W (dpi) 600 x 600, 600 x 400, 600 x 300
Resolution Scan Colour (dpi) 600 x 600
Resolution Print (dpi) 1200 x 1200
Gradation (equivalent levels) - B/W 2
Gradation (equivalent levels) - Colour 256
Zoom range (%) 25 - 400
Preset copy ratios 10
Document Feeder
Original capacity (sheets) 150
Scanner
Network Scanner (Standard / Option) STD
Scan method Push scan and Pull scan Y
Resolution push scan (dpi) 100, 150, 200, 300, 400, 600
Resolution pull scan (dpi) 75, 100, 150, 200, 300, 400, 600, 50 - 9600
File formats XPS, TIFF, PDF, PDF/A, encrypted PDF, JPEG
Scanner utilities Sharpdesk, Sharpdesk Mobile
Scan destinations Desktop Y
Scan destination FTP, Email Y
Scan destination Network folder Y
Scan destination USB memory Y
Document Filing
Document filing (Standard / Option) STD
Document filing capacity- main and custom folders (pages) 20.000
Document filing capacity - quick file folder (pages) 10.000
Stored jobs Copy, print, scan, fax transmission
Storage folders Quick file folder, main folder, custom folder (max. 1000)
Confidential storage Y
Printer
Resolution (dpi) 1200 x 1200, 600 x 600, 9,600 x 600
Enhanced resolution (dpi) 1200 x 1200
Network Printer (Standard / Option) STD
Interface Std/Opt STD USB 2.0, 10Base-T/100Base-TX/1000Base-T
Supported OS Standard Windows Server 2003, 2008, 2012, Windows XP, Windows Vista, Windows 7, 8, Mac OS 10.4, 10.5, 10.6,10.7, 10.8, 10.9
Supported OS Options -
Network protocols TCP/IP (IPv4,IPv6), IPX/SPX (NetWare), EtherTalk (AppleTalk)
Printing protocols LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, Novell Printserver application with NDS and Bindery, FTP for downloading print files, EtherTalk printing, IPP
PDL Std/Opt STD PCL 6 emulation, Adobe PostScript 3/Opt XPS
Available fonts 80 (PCL), 139 (Adobe PostScript 3)
Fax
Fax (Standard / Option) OPT
Compression method MH/MR/MMR/JBIG
Communication protocol Super G3
Transmission time (sec) 3
Modem Speed (bps) 33.600 - 2.400
Transmission resolution 203,2 x 97,8, 406,4 x 391
Document Size (Min) A5
Document Size (Max) A3
Memory (MB) 1024
Grey Scale levels 256
Dial Registration; rapid/speed dial 2000
Broadcast Transmission (max. destinations) 500
Finishing
Output Capacity Max. 400 - 4000
Staple Capacity (sheets) Max. 50
Saddle Stitch OPT
Off-set shifting STD
Hole punch OPT
